Gulmohar G20 ECG Machine

Home → Our Products → Gulmohar G20 ECG

Your Partner in Advanced Health Solutions

Gulmohar G20 ECG Machine
Gulmohar G20 ECG thumbnail 1 Gulmohar G20 ECG thumbnail 2

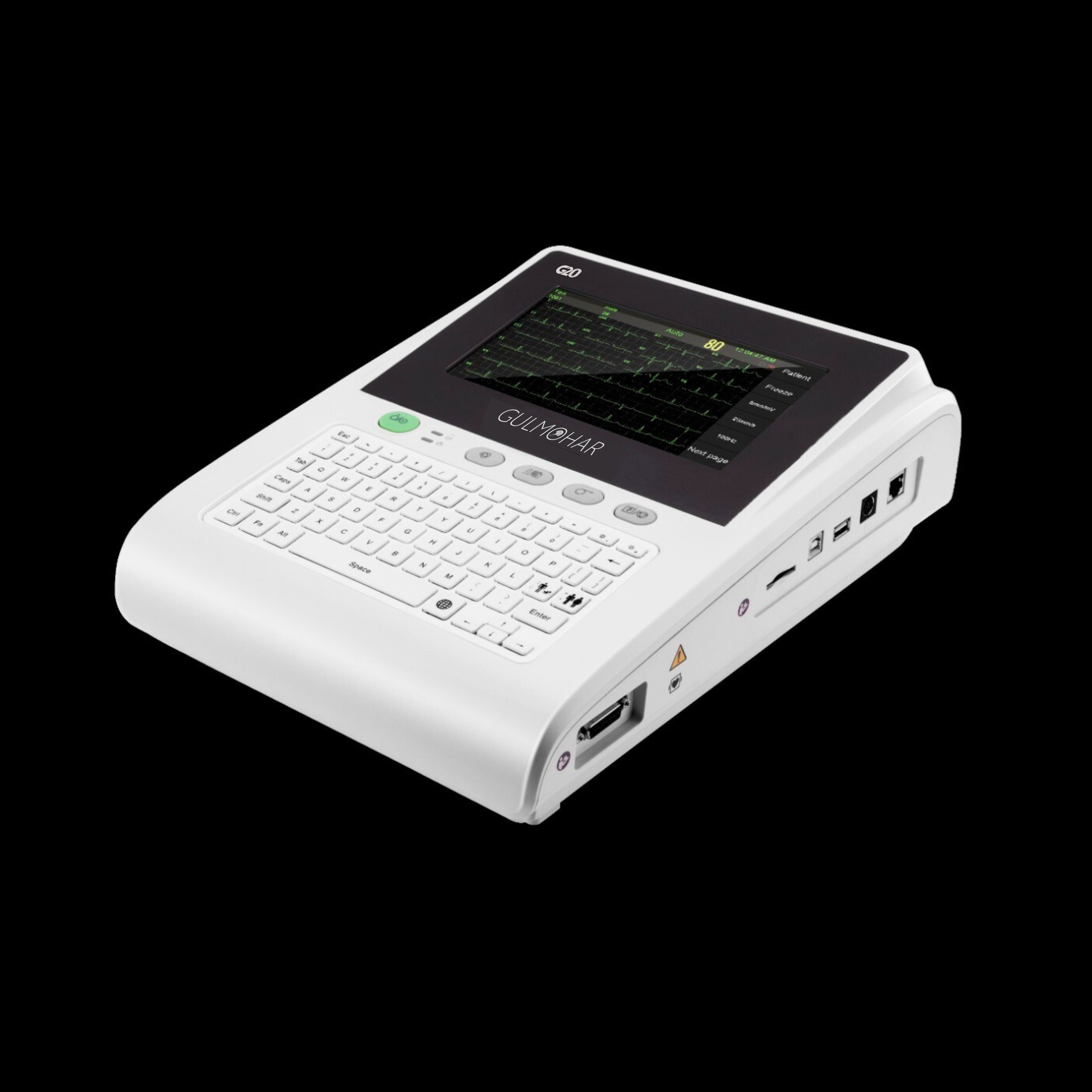

Gulmohar G20 ECG: Digital Portable Electrocardiograph

The Gulmohar G20 ECG is a compact and portable 3-channel digital electrocardiograph. It features a 4.3-inch color LCD touch screen and a high-resolution thermal printer, designed for efficient and accurate ECG monitoring in various clinical settings.

With innovative digital filters for better performance and high-precision data sampling (24-bit, 1000Hz), the G20 ECG ensures waveforms are displayed accurately. It supports multiple sampling modes (Pre-sampling, Real-time, Trigger) and various report formats, all powered by a high-capability rechargeable lithium battery for extended use.

Download Brochure

Key Features

4.3" Color LCD Touch Screen

Intuitive and clear display for easy operation and rapid waveform visualization.

High-Resolution Data Sampling

Adapts 24-bit high-resolution (1000Hz frequency) sampling for accurate waveform display.

Innovative Digital Filters

Ensures better performance with AC, baseline drift, EMG, and lowpass filters.

Built-in Thermal Printer

Integrated 80mm reel-type thermal printer for immediate report generation.

Long Battery Life

High-capability rechargeable lithium-ion battery for up to 4 hours of continuous use.

Flexible Data Management

Supports internal memory (200 groups), U disk, and multiple data formats (PDF, DAT).

Technical Specifications

Display:

4.3-inch, 480x272 TFT LCD (Touch Screen)

Dimensions:

315mm × 215mm × 75mm

Weight:

1.6 kg

Signal Input:

12-lead, Defibrillator-proof, Pacemaker pulse rejection

Sampling Rate:

1000Hz

A/D Resolution:

24-bit

Data Storage:

200 groups (Internal Fixed Memory), U disk (Optional)

Recorder:

Thermal dot array, 80mm reel paper

Recording Speed:

5, 6.25, 10, 12.5, 25, 50 mm/s

Battery:

2000mAH Rechargeable Lithium-ion (Approx. 4 hours continuous use)

CMRR:

≥110 dB (with AC filter)

Report Formats:

Auto, Manual, and Rhythm modes

What's in the Box?

ECG Cable:

1 pc 12-lead patient cable

Electrodes:

1 set Limb clamps & 1 set Chest bulbs

Thermal Paper:

1 roll (80mm)

Power Adapter:

1 pc power adapter & cord

Conclusion

The Gulmohar G20 ECG Digital Portable Electrocardiograph offers an exceptional combination of portability, accuracy, and ease of use. Its high-resolution touch screen, advanced digital filters, and robust battery make it an ideal choice for clinics, hospital rounds, and emergency settings, ensuring reliable ECG acquisition wherever it's needed.
